Jib Crane Added To Walk-Behind Forklift

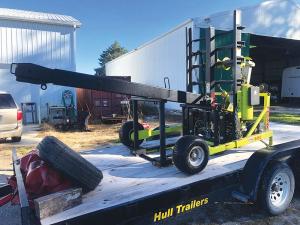

When Randy Boyce needed something to lift heavy parts for his restoration business, he thought adding a boom and jib crane to his walk-behind Burro 6162 forklift might be exactly what he was looking for.
    He left the Burro standard, with its 14-hp. Honda motor and 3-lever hydraulic system that controlled the boom, forks, 24-in. reach extension plus the electric winch.
    To support his extended boom, Boyce welded a framework of 1/2-in. thick by 3-in. boiler pipe for upright legs and upper horizontal supports. He added metal pockets for the forklift tines to slide into to lift the unit.
    The exterior boom is 8-in. square tubing with the interior telescoping beam slightly smaller. He welded a handle on the end for manual positioning, using a 1-in. pin to secure it every 2 ft. A large pivot pin supports the boom at the forklift mast with four U-bolts added for extra stability.
    “When fully extended, I can lift the tail end of my van with it,” says Boyce. “The winch is also great for lifting. I just run the cable around the end through a pulley.”
    With the forks lowered, the boom reaches out to an 8 ft. height. In the raised position, it extends up to 16 ft. when fully telescoped.
    “If I were to build it again, I’d make the main pivot pin fit a bit better,” Boyce says. “It’s a little tight, so I need to use a hammer to slip it in and out.”
    He built and welded the jib crane from scratch and estimates he put slightly less than $1,000 into the project.
    Contact: FARM SHOW Followup, Randall Boyce, Quality Auto Repair, 1755 Oaks Avenue, Marshalltown, Iowa 50158 (ph 641-753-9468; quality@heartofiowa.net; www.qualityauto56.com).
