Easy-To-Build Bale Spear Trailer

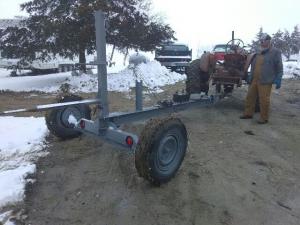

FARM SHOW reader Bruce Dick figured out an easy way to haul a big round hay bale with a simple trailer/spear/winch.
  “It’s a single axle with a long tongue,” he explains. “My biggest expense is the battery and 3,500-lb. winch.”
  He built his first one from an old camper trailer axle to haul 1,500-lb. bales. When the bales got bigger - 2,000 lbs. - he built a heavier-duty model from scrap material he had on hand. He used an I-beam and square tubing for the frame, and a 54-in. spear made out of old hydraulic cylinder rams sticks out the back. The back upright beam pivots forward with the winch and a 4-part pulley system. A short section of channel iron stops the bale before it hits the pivot point so the bale is easy to unload.
  Contact: FARM SHOW Followup, Bruce Dick, 3585 174th Rd., Delia, Kan. 66418 (ph 785 771-2335; kimberlydick3@gmail.com).
