Electric Motor Raises, Lowers Elevator
"It saves work and time," says Dave Peter-son, Lake Mills, Iowa, who mounted a 1/ 3 hp reversible electric motor on his 52-ft. long bale elevator, allowing him to automatically raise or he eletvator without hand cranking it.
The motor belt-drives a gearbox that chain drives the shaft originally used to hand crank
..........
You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book
Electric Motor Raises, Lowers Elevator GRAIN HANDLING Accessories 17-1-10 "It saves work and time," says Dave Peter-son, Lake Mills, Iowa, who mounted a 1/ 3 hp reversible electric motor on his 52-ft. long bale elevator, allowing him to automatically raise or he eletvator without hand cranking it.

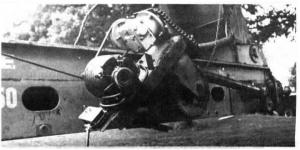

The motor belt-drives a gearbox that chain drives the shaft originally used to hand crank the elevator. Peterson bolted the motor and gearbox onto a steel plate that's fastened to the side of the elevator. A pair of switches are used to turn the motor on or off and to reverse its direction. Peterson lengthened the shaft 2 in. so that he can still raise or lower the elevator by hand whenever electricity isn't available.
Contact: FARM SHOW Followup, Dave Peterson, Box 84A, Lake Mills, Iowa 50450 (ph 515 592-9262).
