Unbreakable Mounting Bracket For Muffler On Case-IH 2670 Tractor
 ✖  |
Guy Klosterman, Wahpeton, N. Dak.: "When the muffler on my Case-IH 2670 trac- tor fell off, I used 3/8-in. thick steel plate to build a new ĉunbreakable' mounting bracket. "The muffler on this tractor is notorious for falling off because the mounting hardware for it is poorly designed. It costs about $500 to replace the entire muffler system with a heavier duty one. I've known farmers who have welded steel fence posts from the muffler to the cab to solve the problem. I spent only about $10 on parts to make my bracket.

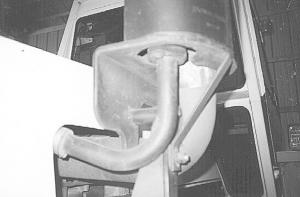

"I made a new heavy duty steel bracket by bending a 3/8-in. steel plate into an L shape and welding it to another steel plate that was already on the bottom of the muffler. A steel strap runs diagonally from one side of the new plate down to the original factory mounted bracket. A bolt runs through the bottom of the strap and through the factory-mount bracket to the other side of the new bracket."
Click here to download page story appeared in.
Click here to read entire issue
Unbreakable Mounting Bracket For Muffler On Case-IH 2670 Tractor TRACTORS Modifications 21-6-31 Guy Klosterman, Wahpeton, N. Dak.: "When the muffler on my Case-IH 2670 trac- tor fell off, I used 3/8-in. thick steel plate to build a new ĉunbreakable' mounting bracket. "The muffler on this tractor is notorious for falling off because the mounting hardware for it is poorly designed. It costs about $500 to replace the entire muffler system with a heavier duty one. I've known farmers who have welded steel fence posts from the muffler to the cab to solve the problem. I spent only about $10 on parts to make my bracket.
"I made a new heavy duty steel bracket by bending a 3/8-in. steel plate into an L shape and welding it to another steel plate that was already on the bottom of the muffler. A steel strap runs diagonally from one side of the new plate down to the original factory mounted bracket. A bolt runs through the bottom of the strap and through the factory-mount bracket to the other side of the new bracket."
