Big Tree Spade Mounts On Tractor's 3 Pt Hitch
"It'll dig up a tree up to 8 ft. tall and almost 3 in. in dia. in two minutes or less," says Earl Weber about the big hydraulic tree spade he built to mount on the 3 pt. hitch of his tractor.
Mounting the spade on the 3 pt. makes it more versatile than commercial models that mount on wheeled trailers, notes Weber
..........
You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book
Big Tree Spade Mounts On Tractor's 3 Pt Hitch HITCHES Hitches 19-2-7 "It'll dig up a tree up to 8 ft. tall and almost 3 in. in dia. in two minutes or less," says Earl Weber about the big hydraulic tree spade he built to mount on the 3 pt. hitch of his tractor.
Mounting the spade on the 3 pt. makes it more versatile than commercial models that mount on wheeled trailers, notes Weber, a retired farmer from Dunlap, Iowa.
"I've moved thousands of trees with it since I built it 10 or 15 years ago and I've never had an ounce of trouble with it," says Weber.

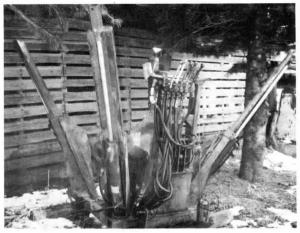

The 4-bladed spade is about 6-ft. high, 35-in. in dia. at the top and narrows to about 1 ft. in dia. at the bottom. The hydraulically activated blades, which are each 3 ft. long, are made out of high tensile steel. Each is powered by a 4-in. dia. hydraulic cylinder with 3 ft. stroke. Slides are 1/4-in. thick plate iron.
They'll dig down 3 ft. and can easily handle a 400 to 500 lb root ball, Weber says.
Including the four hydraulic cylinders bought new for $40 apiece, Weber has less than $500 in the machine, which he now rents out to neighbors.
Contact: FARM SHOW Followup, Earl Weber, R. R. 1, Box 194, Dunlap, Iowa 51529 (ph 712 643-5756).
