Rotor Bar Conversion Kit For Case-IH Axial Flow Combines
This isn’t exactly a new product, but it may

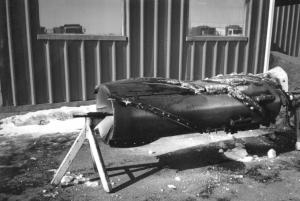

be one some FARM SHOW readers are unfamiliar with. It’s a rotor bar conversion kit for Case-IH Axial Flow 60 and 80 series combines to increase capacity when working in tough straw or green materials. It consists of 3/8 by 2-in. angle iron bars formed to the contour of the rotor.
They bolt to flat bars welded to the rotor. The angle iron forms a
“screw” that allows grain and straw to move along the rotor easier than the straight bars the combines came equipped with. Three
bars are required on the 60 series and four on the 80 series. Price installed is $1,200 and $1,500, respectively, including balancing the rotor.
(Hart Machine & Mfg. Co., Hwy. 17 E., P.O. Box 351, Grafton, N. Dak.
58237; ph 701 352-1330, fax 3726).
