Reader Shares Shop Ideas
Vern Desotell of Clarissa, Minn., says, “I’ve been a FARM SHOW reader for nearly 30 years. If I can’t sleep, I read old stories over and over again. I like the handy hints that people send in because they are such good ideas. I wanted to share some things I’ve built that might be helpful to other readers.”

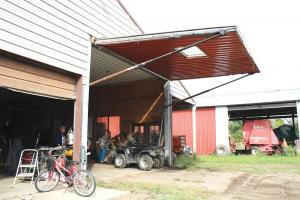

TIP-UP SHOP DOOR
“I made a 14 by 18-ft. tip-up steel shop door out of miscellaneous parts. The lift cylinders are from an old IH tractor and for the power unit, I used an electric motor that runs at 1,275 rpm’s. That was too fast, so I geared it down with the head from an old barn cleaner. That slows it down three times. I made three door hinges from the pivot points on a moldboard plow. They’re really strong and work very well. The door raises in about 15 seconds, which is plenty fast.”

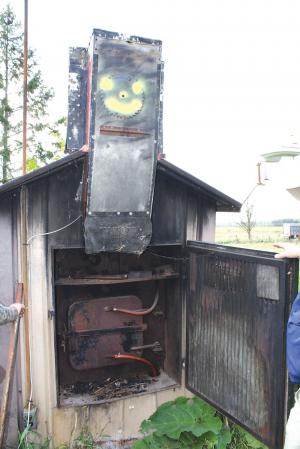

BOILER SMOKE VENT
“I came up with a special vent to keep smoke from billowing in my face every time I opened up my wood burner to add wood. I bolted a U-shaped tunnel to the side of the building. It’s probably 3 to 4 ft. long, so it’s above the roof. I mounted an electric fan on top of the tunnel and connected power to the light switch, so when I flip on the light, the fan starts running and sucks the smoke away from my face.”

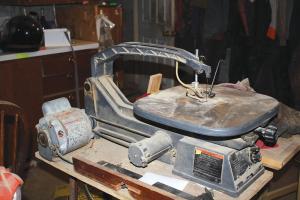

FIXED MY SKIL SAW
“The motor on my Skil saw burned out and a new one would have been way too expensive, so I came up with another idea. I emptied the motor casing and cut a slot in the outside and put a different electric motor on that runs the belt to my scroll saw.”

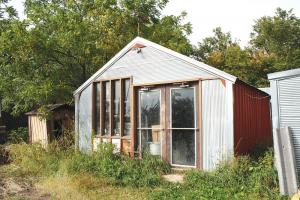

“I built a 14 ft. wide by 16 ft. long by 7 ft. tall storage shed using a large metal door frame that I got from a local care center that was being remodeled. I welded the pieces together and used 2 by 4 studs and 16 penny nails through the door frames. The roof and side walls are steel, and I put salvaged windows in for light. It was flimsy before I added the side walls, but now it’s real sturdy and it’s a nice little building.”
Contact: FARM SHOW Followup, Vern Desotell, 39825 225th Ave., Clarissa, Minn. 56440.
