Nifty Lift Makes Mower Work Easy
“After moving to town and not having a loader tractor anymore to lift the front of my riding mower, I tried several ways to get the job done - including using hi-lift jacks and several types of ramps,” says Greg Waldie, Miles, City.

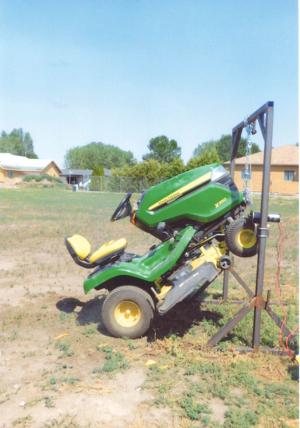

“I finally came up with a lift frame that works great and doesn’t have any obstacles underneath so it’s easy to reach the mower deck.

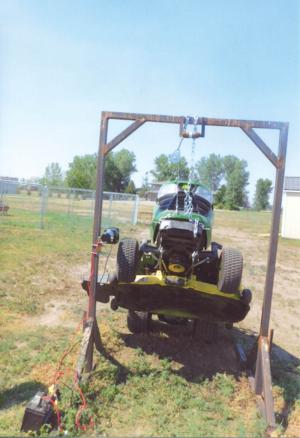

“A local welding shop built the frame for me using 2-in. sq. tubing. An ATV winch bolts to the side of the frame about 3 ft. up on the side. I ran the winch cable up through a pulley at the top. Once the mower is up, I attach a safety chain to it to hold the mower securely in place.
“The frame is 7-ft. high, 53-in. wide, and mounts on 6-ft. skids at the bottom. It’s very portable and easy to move.”
Contact: FARM SHOW Followup, Greg Waldie, 514 Michels Ave, Miles City, Mont. 59301 (ph 406 234-4789).
