Mini Digesters Built For Smaller Dairy Herds
 ✖  |
A new manure digester from Martin Energy Group can economically produce electricity from herds as small as 75 head or less. The flexible design allows it to be modified for herds up to 500 head. The low-cost system consists of only 2 major components: a digester reactor and a container with electromechanical systems and controls.
The first 20 kW system was installed in Ontario more than 2 years ago, explains John Hawkes, Martin Energy Group.
“It was the first, factory-built anaerobic digester in North America,” he says. “Everything was then delivered on a flatbed.”

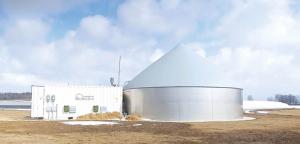

The digester/reactor is a stainless steel tank with a liner and double insulated roof that simply bolts together. This is where the anaerobic process turns manure into methane.
A 20-ft. long shipping container holds the technology needed to turn the methane into energy and controls the entire process. It includes a hydrogen sulfide (H2S) management system with carbon filtration, boiler, genset, valves and control systems. It also includes connections to the local electrical grid for sale of excess power.
“The only other elements needed are pumps and pipes to move the manure to the digester and to remove digestate,” says Hawkes. “The only outside expertise needed for installation is an electrical contractor. Once it is set up, it can all be controlled from an app on a smartphone.”
Once the system is set up, manure is pumped into the reactor several times a day, with an equal amount of digested manure pumped out. Biogas formed through anaerobic fermentation in the reactor is purified and burned in an internal combustion engine attached to a generator. Electricity in excess of farm use is sent to the grid. Discharged manure is run through a screw press to separate liquids and solids. Separated solids can be used for bedding and liquids applied to fields.
Hawkes says systems are being assembled in Europe at the rate of 1 to 2 systems per week for deployment worldwide. A second system has been installed in Pennsylvania, and several more are in process. While the company has been installing digesters for large herds for a number of years, small herd-sized systems have not been readily available until now.
“When we found this Bioelectric system in Europe, it seemed exactly what was needed. It is easy to run, low cost and simple. It suits small farms,” says Hawkes.
“Costs vary, but a system designed for a 200-cow herd runs around $400,000,” says Hawkes. “The larger the herd, the faster the payback.”
Contact: FARM SHOW Followup, Martin Energy Group, 17 Maple Ave., Toronto, Ont. Canada M4W 2T5 (ph 416 890-3992; www.martinenergygroup.com).
