A Simple Way To Make A Saddle Cut On Pipes
 ✖  |

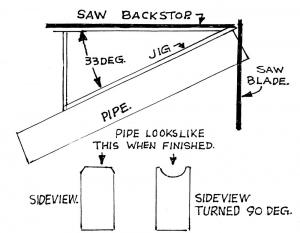

Joe Germuga, Rochester, N.Y.: “I came up with a simple way to make a saddle cut on pipes using a chop saw. I made a 33 degree angled jig that sits against the backstop of my saw. You place the pipe on the table against the jig and cut off the corner of the pipe. Then rotate the pipe 180 degrees and cut the other side the same way. You get a clean cut that fits nicely against another piece of pipe. It helps to practice a bit on some scrap pipe and to cut slowly because you’re cutting on the end of the pipe.”
Click here to download page story appeared in.
Click here to read entire issue
A Simple Way To Make A Saddle Cut On Pipes FARM SHOP Handy Hints Joe Germuga Rochester N Y : “I came up with a simple way to make a saddle cut on pipes using a chop saw I made a 33 degree angled jig that sits against the backstop of my saw You place the pipe on the table against the jig and cut off the corner of the pipe Then rotate the pipe 180 degrees and cut the other side the same way You get a clean cut that fits nicely against another piece of pipe It helps to practice a bit on some scrap pipe and to cut slowly because you’re cutting on the end of the pipe ”
