Cutterbar "Fingers" Get More Crop

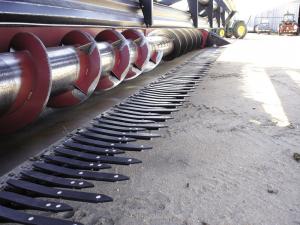

Heavy crops are no challenge to the Downer Creek Crop Guard "Fingers". They reach out into the crop, separating and guiding stalks into the cutterbar. Crop flow is enhanced by the staggered positioning of 13 and 17-in. fingers.
  The Crop Guard was designed for milo, but it's rapidly gaining users in other crops, says Keith Deines, Downer Creek. "People have used it with corn, millett, sunflowers and soybeans," he says. "We use it on milo and hailed wheat."
  Deines says that while it worked well on the hailed wheat, the Crop Guard wasn't intended for downed crop rescue.
"The Crop Guard was designed to help handle heavy yielding crops," he says. "By separating and guiding the stalks into the cutterbar, you reduce shatter loss and save the grain."
Deines adds that the fingers, with their gentle 12-degree downward bend, protect the cutterbar from "bulldozing" the crop. The curve keeps the bar off the ground, even in the heaviest of crops.
Made from 3/8-in. thick, UV-resistant plastic, the fingers taper at both ends. At the cutterbar, the narrowing design offers maximum sickle cutting width. The guards bolt in place for added security.
"Installing the guards over the top of the cutterbar blocks cut heads from rolling off the platform and to the ground, especially when turning on headlands," explains Deines. "Any heads kicked onto the guards tend to stay there until the entering crop can push them back onto the platform."
The Crop Guard fingers are guaranteed for two years against tip breakage. Call Downer Creek for pricing.
Contact: FARM SHOW Followup, Downer Creek, 21028 V Road, Ransom, Kan. 67572 (ph 785 731-5634; kcdeines@gbta.net; www.downermiloguard.com).
