Self-Cleaning Shallow Water Screen
Anyone who depends on river or canal water for irrigation will be interested in this new water-driven, self-cleaning screen that's designed to work in water as shallow as 4 in.
  "There's nothing else on the market that can pump out of such shallow water and also clean itself at the same time," says inventor Bob Wietharn.

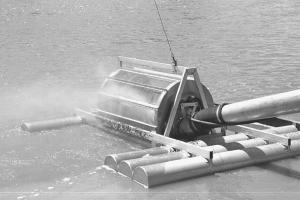

  The Riverscreen floats on four pontoons and draws water from more than 35 sq. ft. of screening area. Water is delivered through a pipe available in 4, 6, 8, 10, or 12-in. dia. with 150 gpm to 4,000 gpm capacity. A screened, rotating drum measuring 32 by 48 in. is supported by an aluminum frame that mounts on the pontoons. Flowing water moves past a series of paddles, which force the drum to rotate and self-clean via a stainless steel mesh screen. As the screen rotates with the drum it goes by a series of jets, which dislodge anything that sticks to the screen.
  An optional electric power drive can be added for use in slow-moving water, tailwater return pits, and manure lagoons. Also optional is a galvanized lift boom that lets one person quickly swing out and gently lower the Riverscreen to the water surface.
  "It draws water that's only 2 in. below the surface, which is usually the cleanest water," says Wietharn. "It draws water from seven times the area of the suction line. You can draw from shallower water if you're pulling it from a bigger area, because the the water moves more slowly."
  Contact: FARM SHOW Followup, Riverscreen, Inc., 1925 Kiowa Road, Clay Center, Kansas 67432 (ph 785 632-5452; email: Riverscreen@kansas.net; website: www.riverscreen.com)
