Combine Grain Tank Makes Cheap Bulk Feed Bin
Grain tanks off old combines can be converted into low-cost bulk feed bins, says Kenneth Wilde, Fortuna, Mo., who used a 200-bu. Massey Harris grain tank to make a bin that holds up to one ton of feed.
"I use it to fill 5-gal. buckets which I dump into bunks for my cattle. I already had the tank so it cost very
.......... You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book
Combine Grain Tank Makes Cheap Bulk Feed Bin COMBINES Miscellaneous 25-5-42 Grain tanks off old combines can be converted into low-cost bulk feed bins, says Kenneth Wilde, Fortuna, Mo., who used a 200-bu. Massey Harris grain tank to make a bin that holds up to one ton of feed.
"I use it to fill 5-gal. buckets which I dump into bunks for my cattle. I already had the tank so it cost very little to set up," says Wilde.

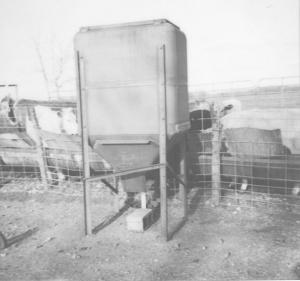

The tank is supported by four 7-ft. long, 2-in. angle iron legs bolted to a 4 by 5-ft. concrete pad. Lengths of 1-in. angle iron serve as cross braces. Feed gravity flows out through a 10-in. sq. opening fitted with a chute. A truck-type endgate controls the flow of grain. The tank is filled by a grinder-mixer auger through a 10 by 14-in. opening at the top of the tank that's covered by a hinged metal lid.
"The tank sits next to the panel fence where I keep my cattle, with a 45-ft. long feed trough on the opposite side of the fence. I fastened lengths of tin onto the fence which slope down to the trough along its entire length. That way I can dump 5-gal. buckets of feed through the fence without having to reach over," says Wilde.
He made his own feed troughs by cutting 50-gal. barrels in half and welding them together. He used 2-in. angle iron for the legs and frame.
Contact: FARM SHOW Followup, Kenneth Wilde, 10426 Angel Dr., Fortuna, Mo. 65034 (ph 660 337-6396).
