Articulated Liquid Manure Spreader

1992 - Volume #16, Issue #3, Page #15

[ Sample Stories From This Issue | List of All Stories In This Issue | Print this story | Read this issue]

A new 6-wheel "articulated" liquid manure spreader equipped with a toolbar won the gold medal for innovation at the recent International Salon of Farm Machinery in Montreal, Quebec.

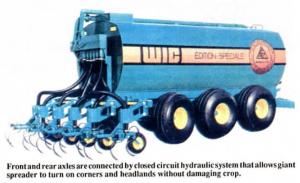

Wic Inc., Wickham, Quebec, introduced the high-tech tank, whose two rear wheels are turned automatically by a "closed-circuit" hydraulic steering system. This system consists of a cylinder mounted on the front hitch, connected to a cylinder on the rear axle. The steerable rear wheels prevent damage to crops on headlands or contours by the big tank. All three pairs of wheels have independent suspension, and the tank can be equipped with a rear-mounted toolbar that's hydraulically raised or lowered. A series of 3-in. dia. hoses run from the tank to the toolbar, which can be equipped with either shanks or discs for sidedressing corn.
"Sidedressing liquid manure makes manure available to plants when they need it the most," says Claude Rivard, president. "It also extends the manure application season so you can apply manure when you're not as busy, and lets you control weeds while applying nutrients. The toolbar has three shanks per row. The front shank digs a groove for the manure, and the rear two shanks cover it with 2 to 3 in. of soil. Manure application depth is shown on a gauge (optional) on the front of the tank. The distribution boom between the tank and toolbar ensures even spreading between all rows.
"An optional computer and dosing pump can be used to automatically apply the exact gallons of manure needed per acre. A speed sensor installed on one of the spreader wheels allows the system to automatically adjust for changes in tractor speed and keeps application rate constant. Application speed is generally 2 1/2 to 5 mph. A series of digital displays and indicator lights show you the vehicle speed, gallons per acre, acres covered, and gallons applied, etc. The dosing pump can be equipped with an optional dry matter gauge that ensures the proper application of nitrogen, phosphorus and potassium during spreading," says Rivard, noting that the computer can also be used by itself without a dosing pump as a flow monitor.
The company's new "Quantofix Volumeter" kit lets you periodically measure the manure's nitrogen content so you have a better idea of how much manure to apply per acre. It reads the volume of nitrogen from a chemical reaction between a manure sample and a reagent.
Tank can be easily removed from trailer frame, allowing you to mount a wagon box or flatbed on it for other uses. A PTO-driven impeller at the front of the tank can be opened for fast cleaning in case it plugs up. The distribution boom and toolbar is available in 4 or 6-row models and can be adapted to other tank brands. Wic tanks range from 1,800 to 6,000 gal. The company also offers distributing booms for use on small grain crops, grassland, and noncultivated fields.
Contact: FARM SHOW Followup, Wic Inc., Wickham, Quebec, Canada J0C 1S0 (ph 819-398-6822).
