PVC Rope Wick
 ✖  |

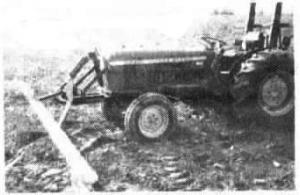

I made a front-mount lift frame for a PVC rope wick that's simple but works great. I used the frame from an old Deere KBA disk. It attaches to the front weight brackets on the tractor and also to the grill guard. The PVC pipe lays on a long piece of angle iron. The ends of the iron pipe from the disc frame are notched and 8-in. pieces of angle iron are welded to each. The angle iron that sup-ports the PVC is then bolted to these brackets on the iron pipe. A single cylinder raises and lowers the wick applicator by tilting the lift arms up and down as needed. (Don Gibbs, 5428 Onondaga Rd., Onondaga, Mich. 49264)
