Bale Mover Made From Old Steel Rake Wheel
 ✖  |

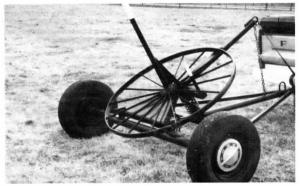

I made this bale mover using an old steel rake wheel with a spear mounted on the hub. It rides on a 2-wheel axle and is raised and lowered by a hand-cranked winch. When the bale is in the raised, transport position, it's cushioned by an automotive coil spring mounted behind the wheel. Lets me haul bales with my pickup. (Mark Klein, 1318 So. Arlington, Sedalia, Mo. 65301 ph 816 826-4051)
