Hyudraulically-Adjustabel Grader Blade
Anyone who's done much grading with a 3-pt. mounted grader blade, knows it's not easy to do a good job. That's why B.L. Uhnken, Jacksonville, Ill., decided to make a hydraulically-adjustable, tow-behind frame to hold his blade.
It consists of a "wishbone" hitch, made from heavy angle iron, that extends back over
..........
You must sign in, subscribe or renew to see the page.

You must sign in, subscribe or renew to see the flip-book

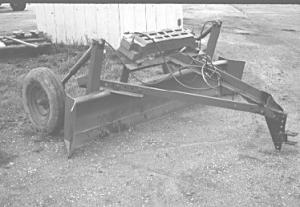

Hyudraulically-Adjustabel Grader Blade LIVESTOCK Health 20-1-11 Anyone who's done much grading with a 3-pt. mounted grader blade, knows it's not easy to do a good job. That's why B.L. Uhnken, Jacksonville, Ill., decided to make a hydraulically-adjustable, tow-behind frame to hold his blade.
It consists of a "wishbone" hitch, made from heavy angle iron, that extends back over the blade to a pair of rubber-tired wheels. Each wheel is fitted with a hydraulic cylinder for precise depth control. Cutting angle of the blade can be made more or less aggressive by moving the hitch on the tongue up or down. The blade simply tows off the tractor drawbar.
Contact: FARM SHOW Followup, B.L. Uhnken, 25 Westfair, Jacksonville, Ill. 62650.
