Drive Through Wagon Dump
To dump gravity box wagons on his farm near Rockford, Iowa, Henry Kalke, Jr., designed a drive-through wagon dump that's easy to use and portable.
The wagon dump consists of a tube steel frame with enough clearance for a tractor and wagon, and a ramp on one side. The ramp is lifted at both ends by cables running
..........
You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book

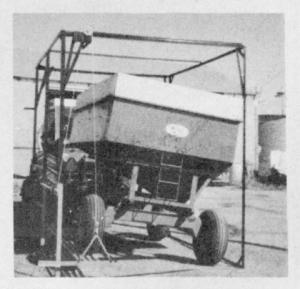

Drive Through Wagon Dump GRAIN HANDLING Wagons (63E) 7-3-7 To dump gravity box wagons on his farm near Rockford, Iowa, Henry Kalke, Jr., designed a drive-through wagon dump that's easy to use and portable.
The wagon dump consists of a tube steel frame with enough clearance for a tractor and wagon, and a ramp on one side. The ramp is lifted at both ends by cables running to the top of the frame, through pulleys, and down the side of the frame to a drive shaft which is powered by an electric motor. The ramp lifts the wagon high enough to dump 100% of every load, no matter what the moisture content, according to Kalke. His unit has been in use for 4 to 5 years. He's looking for a manufacturer for the wagon dump.
For more information. contact: FARM SHOW Followup, Henry Kalke, Jr., Rt. 2, Rockford, Iowa 50468 (ph 515 423-5797).
