Heavy I-Beam Balel Fork

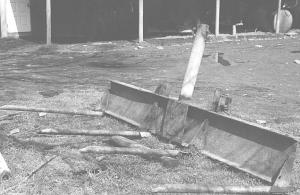

Bobby Abernathy, Casa, Ark., built a big I bale fork that hauls two bales at a time and mounts on the 3-pt. of his 65 hp Deere 2555 tractor.
He built the fork last year out of a 9-ft. section of I-beam.
He welded four shafts to the beam, making gussets out of 1/4-in. thick flat steel to handle the weight of
..........
You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book
Heavy I-Beam Balel Fork HAY & FORAGE HARVESTING Bale Handling (5) 20-5-11 Bobby Abernathy, Casa, Ark., built a big I bale fork that hauls two bales at a time and mounts on the 3-pt. of his 65 hp Deere 2555 tractor.
He built the fork last year out of a 9-ft. section of I-beam.
He welded four shafts to the beam, making gussets out of 1/4-in. thick flat steel to handle the weight of his 5 by 5 grass hay } bales.
He made a 3-pt. quick-tach system out 7 of a 2-ft. length of 3-in. dia. pipe and flat iron.
"We've moved 500 bales with it and it really works slick," Abernathy says. "It's twice as fast as carrying a single bale on the front-end loader."
Contact: FARM SHOW Followup, Bobby Abernathy, Rt. 1, Box 146, Casa, Ark. 72025 (ph 501 233-6395).
