“Lil Gen Deere” Made From Ten Different Tractors

2022 - Volume #46, Issue #6, Page #02

[ Sample Stories From This Issue | List of All Stories In This Issue | Print this story | Read this issue]

Intending to get an old 1969 John Deere 140 garden tractor running, Al Finnbogason bought a 16-hp. Kohler engine and generator out of a Winnebago hoping to split them.
    “After thinking about it for a while, I decided to keep them together and try to make a mobile powerhouse,” says Finnbogason. “I’ve always been a Deere guy, so I measured, figured, and accumulated the needed parts and pieces from over 10 tractors to make it fit together. It’s all accessible. I kept it as much JD as possible, except the motor and generator from the Winnebago.”
    He added 3/8-in. steel to his tractor to give it an extra foot in the front section and match the look of the John Deere 4020.
    “Trying to get the front end the perfect length, figuring out how it would look most like the 4020 was the trickiest part. I needed to make everything fit and be accessible to utilize the generator power,” Finnbogason says.
    To improve the 4020’s look, he installed side grilles that pop on and off. He also combined pieces of three different hoods to make the extended one he needed.
    “The hood took forever,” he says. “Finding complete and good condition hoods was rare. So, when I finally found some, I bit the bullet, hacked everything up, and tried to make three into one. I screwed up the first time, but with a little more patience I got it to turn out darn good.”
    The ‘69 still has the hydro disengage that works well with the added generator. When the brake is applied, the tractor locks down, plus the generator doesn’t spin the whole time.
    “If I need power at the house, I just drive up and plug in what I want to it,” he says.
    He also installed a sleeve hitch on the rear to grab on to trailing equipment. In the future, he’d like to add a front-mounted electric mower that he could hook on to and plug into the generator. He’d also like to change out the small fuel tank with something larger to cut back on refueling stops.

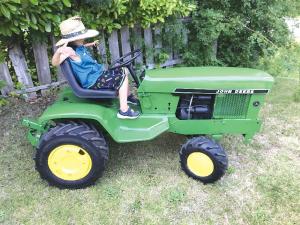

    “It was such an oddball to build, everyone that sees it gives it a second look. Now, I use it to push the little bit of snow we get out of the driveway with a small blade. Plus, I wanted a little Deere for my 5-year-old grandson to drive. He loves it.”
    Contact: FARM SHOW Followup, Al Finnbogason, 79 Lynnwood, Campbell River, B.C., Canada V9H 1G9 (ph 778-552-4569; norseman3@yahoo.com).
