“Made It Myself” Poultry Waterer
 ✖  |
Chuck Krueger says he’s tried several different types of poultry waterers over the years, trying to find one that he wouldn’t have to fill every few days. While most of those waterers worked, the water supply would get dirty and allow algae to develop. Krueger wanted a waterer that would deliver fresh and clean water at an economical price, so he decided to build one himself. He wrote about his system in Backyard Poultry magazine and provided directions on how to build the device he made.
Krueger’s parts list is available from home improvement stores. It includes 4-in. dia. PVC pipe, two 4-in. PVC flat end caps, six 1/2-in. PVC 90-degree elbows, two 1/2-in. PVC plugs, a toilet flow control valve, a flat rubber washer with a 1-in. dia. hole, a stainless steel toilet water supply line, and a brass adapter for connecting to a water supply.

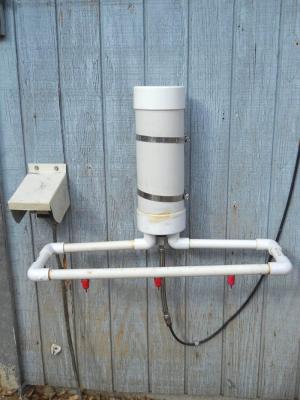

To build his waterer Krueger drilled three holes in one of the end caps, two for installing the PVC plugs and the third for the flow control valve. The flow control extended through the bottom of the cap so a water supply line could be connected, just like on a toilet tank. He used four pieces of 1/2-in. PVC pipe and elbows to make a loop for the fresh water. He attached the loop to the end cap holes with PVC elbows. Five poultry nipples were added to the fresh water loop for the chickens to drink.
The fresh water level in the PVC reservoir is controlled by the toilet valve, with the second end cap serving as the tank cover. Krueger attached the waterer to the side of his coop using large hose clamps.
Krueger also made a second waterer with poultry cups and says that one also works well. For complete instructions with photos see Krueger’s story at www.backyardpoultry.com.
Contact: FARM SHOW Followup, Chuck Krueger via Backyard Poultry.
