Amphibious Vehicle Rides On Giant, Inflatable Wheels
Just for fun, Axel Borg made a one-of-a-kind vehicle with inflatable wheels that runs on power tool motors. Borg says he wanted to be able to drive across water and ended up combining the fun of a kid’s bouncy castle with an ATV.
He made the inflatable wheels from heavy-duty laminated pvc tarp that he sewed together on a conventional sewing machine using professional vapor barrier sealing tape. The tarp was attached to plywood wheels mounted on tubular axles. To power the vehicle, Borg used 4 motors from AC immersion concrete mixers already geared down to 80:1. He added a 3:1 sprocket reduction to move the 6-ft. diameter wheels with 1/2-in. chain. Borg used motor control circuitry from a cordless drill to control the bigger motors, which are powered by 15 14.8-volt batteries connected in sequence.
To inflate the tires, Borg ran a garden hose to each tire from a shop vac. He used a 3D printer to make connectors for the air hoses and electrical components. He says the 3D printer is ideal for producing lightweight parts that aren’t readily available elsewhere.

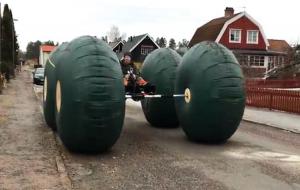

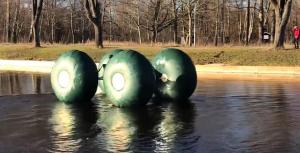

He configured a pivot steering system to turn the vehicle, which has a top speed on land of nearly 18 mph. On the water, Borg says it travels at about 1 1/2 mph. Whether land or water-borne, Borg says driving the vehicle is “wonderful, like taking off in an airplane”.

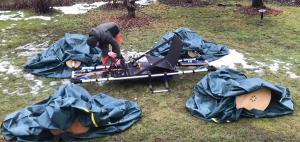

When he’s done driving, the fabric wheels deflate to make the vehicle easy to store.
Contact: FARM SHOW Followup, Axel Borg (makershare.com/projects/inflatable-car-sort).
