Horse Progress Days Featured Innovative Front-Mount Mower

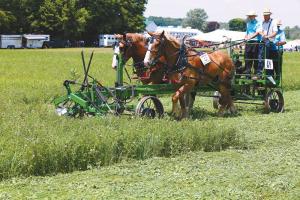

Jonas H. Schlabach’s front-mounted cutter- bar mower was one of the most eye-catching ideas at this year’s Horse Progress Days. The unique design can cut into tight corners, back out, make a right angle cut and turn on a dime for a return swath. The 24-ft. cut makes fast work of even large fields, and having the mower ahead of horses and operator is safer than any trailing mower.
“I’ve mowed 20 acres in 2 1/2 hrs. with horses,” says Schlabach, Family Farm Innovations. He credits a neighbor for the original idea. “He had the brains and we had the tools.”
An 8-ft. center section slightly overlaps two 9-ft. fold-up wings. Hydraulic motors drive the blades, and a cylinder lifts and lowers the bars. Hydraulic power lets the operator on his platform to the rear easily steer both front and back axles. Both the operator’s platform and the cutting bars are self-leveling.
“When you hit a bump, instead of a jolt, it just floats,” says Schlabach.

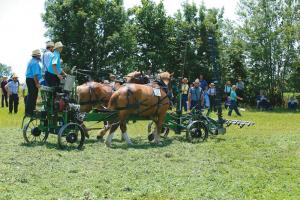

The center stem that connects the front and rear serves as a hydraulic reservoir. A tube that runs along the top houses hydraulic hoses that are fed by a pump on the 20 hp. Honda engine on the rear platform. Horses to either side of the stem provide motive power.
“If we have a problem with the blades on either the left or right bar, we simply swing it up out of the way and keep cutting,” says Schlabach.
Safety matters to Schlabach and his sons. A battery-operated foot pedal on the platform floor has to be stepped on or the sicklebars disengage. However, the outstanding safety feature has to be the platform-mounted hitching post.
“We mounted a 2 by 3-in. solid steel post vertically inside a sleeve on the platform,” says Schlabach. “If there is a problem, or if the operator simply wants to stop, they release the post so it slides down through the sleeve and is driven hydraulically 10 in. into the ground.
“We developed it because the horses, being in the middle, can’t be tied up,” adds Schlabach. “We needed to secure them. However, having seen it in action, I think one should be mounted to every horse-drawn power cart. It adds several hundred dollars to the cost, but you could save a whole rig from a runaway.”
An unexpected feature of the front-mount mower is how easy horses adapt to it. Schlabach has hooked several teams to it for a first time with no problems.
“The horses can see everything that is happening, and the mower is always moving away from them,” says Schlabach. “When horses see something behind them, it scares them and they try to get away.”
Schlabach and sons are now building the mower for sale. Base price is $33,000. Hydraulic brakes are available for an additional $1,050.
Contact: FARM SHOW Followup, Family Farm Innovations, 4549 TR 156, Millersburg, Ohio 44654 or Horse Progress Days (www.horseprogressdays.com).
