“Made It Myself” Lawn Vac
 ✖  |

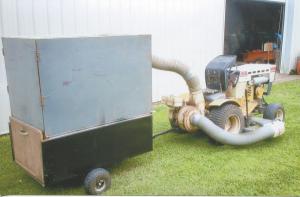

“It saves me a lot of time and was fun to build,” says Edward Bewley, Greensburg, Ind., who built a manually-operated “grass catcher” and trailer box for his 1987 Sears SS garden tractor equipped with a 40-in. mower deck. It lets him mow his 5-acre lawn and collect grass clippings fast.
He bought a used Sears Craftsman vacuum blower at a sale for $25 and mounted it on a homemade steel platform that he bolted on back of the tractor. The impeller is belt-driven by a 5 hp. gas engine. A length of 6 1/2-in. dia. flexible hose runs from the mower deck to the blower and then back to the box, where it hooks onto a welded-on auger pipe welded on front of the box.
Bewley built the 4 ft. long, 26 in. wide, 4-ft. high box from salvaged angle iron and sheet metal. The back side of the box hinges at the top and has a wooden door at the bottom, which rides inside 2 pieces of angle iron. When the box is full, Bewley lifts the top hinged door out of the way and then raises the lower door. He uses a long antique silage fork to remove the grass clippings.
A tongue made of 1-in. square tubing on front of the box hooks up to a drawbar on back of the riding mower. The top of the box is covered by a wire mesh door screen that allows exhaust air to escape.
“It has more capacity than most pull-behind lawn vacs,” says Bewley. “The vacuum blower came off some kind of old leaf chopper. I found it setting on a skid with the engine and blower all built together as one piece. I got the flexible hose from the Cummins Engine company where I worked for 30 years. It had been used as the air intake pipe for a test block where the company tested their diesel engines.”
Contact: FARM SHOW Followup, Edward L. Bewley, 1312 S County Road 280 W, Greensburg, Ind. 47240 (ph 812 593-0669)
