Front 3-Pt. Hitch Designed For Small Tractors

2018 - Volume #42, Issue #3, Page #27

[ Sample Stories From This Issue | List of All Stories In This Issue | Print this story | Read this issue]

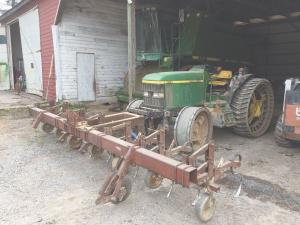

Torben Jenk of Malvern, Penn., recently sent FARM SHOW photos of a tractor equipped with a front-mounted cultivator. It was hooked up to a state-of-the-art, front-mount 3-pt. hitch made by Edwards Equipment, Union Gap, Wash.
  “I saw this set-up last June at an organic farm operated by a Mennonite family in central Pennsylvania,” says Jenk. “The farmer said he likes it because he has a much better view with the implement in front. He had tried using belly-mounted attachments with the tractor, but said they take too long to attach and detach. He did note one limitation– the extra weight up front can cause some ‘crab-steer’ slippage on hillsides.”

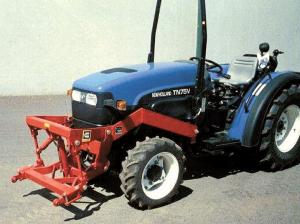

  The hitch isn’t new but is unique, says Randy Searl. “We’ve been building front-mounted hitches for almost 35 years and sell a lot of them up and down the West Coast, where they’re widely used with pack forks to haul bins of fruit out of orchards. These hitches are designed mainly for tractors from 25 to 150 hp. Models are available to carry 800, 1,500 or 3,000 lbs. 24 in. in front of the hitch.
  “The hitches can be set up for use with any Cat. I or II 3-pt. mounted implement. We also build a variety of front-mounted implements including forks, mowers, brush removers, spray booms and so forth. We don’t build cultivators, but our hitches can carry cultivators made by other manufacturers.”

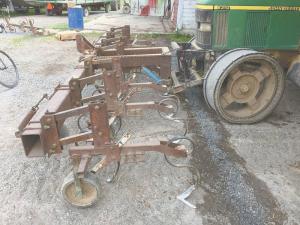

  The 3-pt. hitch that Jenk photographed bolts on in place of the tractor’s front weight bracket. Steel arms run down both sides of the tractor all the way back to the tractor’s clutch housing to help support the load. A single hydraulic cylinder is used to raise and lower the hitch.
  A hitch ball on either side of the frame can be swung out to the side, allowing easy attachment and detachment of implements.
  The company’s 1,500-lb. capacity 3-pt. hitch sells for $3,200.
  Contact: FARM SHOW Followup, Edwards Equipment Co., 4312 Main St., Union Gap, Wash. 98903 (ph 509 248-1770 or 800 452-5151; sales@edwards-equip.com; www.edwards-equip.com).
