Tool Raises Riding Mower Up Off The Ground
 ✖  |

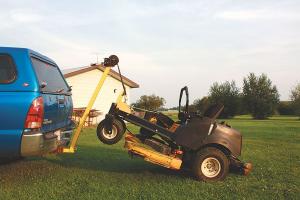

Ross Brown, Millet, Alberta: “I made a tool that fits into the receiver hitch on my pickup and lets me raise the deck on my 54-in. riding mower up off the ground so I can service the blades safely while standing up. It uses a hand-cranked boat anchor winch equipped with a 4-ft. nylon strap, with the winch bolted onto a vertical 4-ft. length of 2-in. sq. tubing. The tubing is welded at a 30-degree angle to a shorter length of tubing that fits into the receiver hitch. The joint where the 2 tubes are welded together is reinforced with scrap metal. I welded a small hook on front of the mower frame.”
Click here to download page story appeared in.
Click here to read entire issue
Tool Raises Riding Mower Up Off The Ground FARM HOME Lawn Mowers 31h 38 Ross Brown Millet Alberta: “I made a tool that fits into the receiver hitch on my pickup and lets me raise the deck on my 54-in riding mower up off the ground so I can service the blades safely while standing up It uses a hand-cranked boat anchor winch equipped with a 4-ft nylon strap with the winch bolted onto a vertical 4-ft length of 2-in sq tubing The tubing is welded at a 30-degree angle to a shorter length of tubing that fits into the receiver hitch The joint where the 2 tubes are welded together is reinforced with scrap metal I welded a small hook on front of the mower frame ”
