Swinging Add On Auger Spout
"We made a swinging auger spout to mount at the top of a conventional auger to fill quonsets from the inside," says Joel Dewitz, Steel, N. Dak.

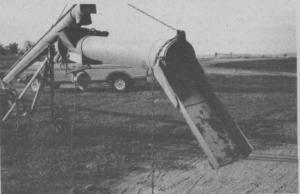

Dewitz mounted an unloading auger from a junked combine below the discharge chute of an auger, using a swivel bracket and chains to suspend it from the end. The swinging
..........
You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book
Swinging add on auger spout GRAIN HANDLING Augers (4) 9-2-9 "We made a swinging auger spout to mount at the top of a conventional auger to fill quonsets from the inside," says Joel Dewitz, Steel, N. Dak.
Dewitz mounted an unloading auger from a junked combine below the discharge chute of an auger, using a swivel bracket and chains to suspend it from the end. The swinging auger is powered by an electric motor, although it could be hydraulically-powered. "By swinging the auger from side to side, grain can be filled higher on the building sides. We've used it for four years and it's saved a lot of shoveling," says Dewitz, noting that he got the idea from a snow conveyor used to load trucks with a hydraulically swinging upper section.
Contact: FARM SHOW Follovvup, Joel Dewitz, Rt. 1, Box 60, Steele, N. Dak. 58482.
