Backhoe-Log Splitter

2015 - Volume #39, Issue #5, Page #04

[ Sample Stories From This Issue | List of All Stories In This Issue | Print this story | Read this issue]

“I needed a backhoe to dig a trench, and I also needed a log splitter to cut firewood. So I converted an old worn out backhoe to do both jobs. My total cost was almost nothing,” says Jackson Brown, Peach Bottom, Penn.

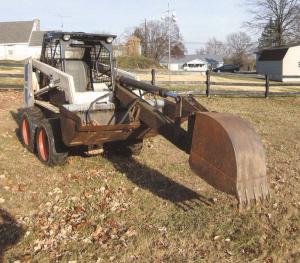

    The home-built backhoe/splitter operates off the hydraulics on Brown’s skid loader. He stripped away everything from the backhoe except for the crowd boom, which is equipped with a hydraulic cylinder and an 18-in. wide bucket. He made a pair of quick-tach metal brackets to match the mounting brackets already on the boom, and welded one on top of the skid loader bucket and the other on the bucket’s leading edge. A pair of 1 1/2-in. dia. pins run through the brackets in order to attach the boom.
    “To remove the backhoe/splitter I just pull both pins and a pair of hydraulic hoses,” says Brown.

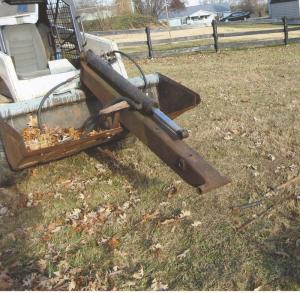

     To convert the machine from a backhoe to a log splitter, Brown replaces the backhoe bucket with a 3-ft. long extension made from a length of steel I-beam. He made the extension by cutting a steel I-beam lengthwise down the middle, leaving 2 halves with holes drilled into their sides that slide onto a stub shaft on the backhoe boom. A pair of short vertical pipes also run down through both I-beams and into the boom.

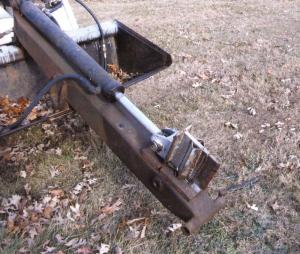

    A homemade wedge pins onto the backhoe’s hydraulic cylinder and slides back and forth inside a gap between the 2 halves of the extension. A vertical steel “foot” welded onto the extension serves as a stop for the log.
    “To remove the splitter I just remove the 2 pipes and 2 hydraulic hoses,” says Brown.
    He welded 2-in. angle iron and 1-in. thick steel together to build the wedge.
    “I like how it turned out. I got the backhoe free and used scrap materials to build everything else. I also made a 6-in. wide bucket for it which I use to dig water and electrical lines,” says Brown.
    Contact: FARM SHOW Followup, Jackson Brown, 2612 Robert Fulton Hwy., Peach Bottom, Penn. 17563 (ph 717 548-2331; cell ph 717 283-5245).
