Coil Spring Compressor Doubles As A Sleeve Puller

2015 - Volume #39, Issue #1, Page #39

[ Sample Stories From This Issue | List of All Stories In This Issue | Print this story | Read this issue]

Nathan Fleischer needed a piston sleeve puller for the 1941 Allis Chalmers C he was restoring in his Berkeley, Calif. backyard. The sleeves were a mess. He had torn the block apart, but he knew he couldn’t just beat them out with a hammer.
  “I only needed to pull them high enough above the block to knock them loose,” says Fleischer. “I decided to make a sleeve puller using the threaded bolt and jaw from a coil spring compressor.”

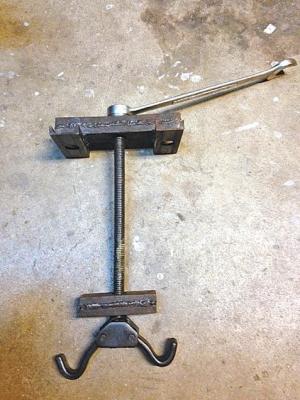

  Fleischer needed a top bridge that would span the cylinder with enough space above the block to pull the sleeve into view. He also needed a push block that fit the bore of the cylinder.
  “I could have used some steel tubing, but all I had was some 2-in. channel iron with 3/8-in. sides,” says Fleischer. “It wasn’t strong enough by itself, so I welded two 5-in. pieces together for the top bridge and two 3 3/8-in. pieces to match the bore.”
  Fleischer welded 2 short pieces of the channel iron at either end of the top bridge to act as spacers to either side of the cylinder. They would let the sleeves raise just enough to be knocked loose.
  After drilling holes in the bridge and the push block, he slipped the bolt through the bridge and the cylinder. He slipped on the push block. After reversing the compressor jaws, he threaded them on as a lock nut. With a few turns of the bolt head, the sleeve came into view.
  “The reversed jaws hit the engine block after 3/4 in. of travel,” admits Fleischer. “As it was, that was just far enough. The great thing is that the bolt and jaws can still be used if I need a coil spring compressor.”
  Fleischer is continuing to work on the model C. He admits there aren’t too many tractors in his urban California neighborhood. He isn’t sure what he will do with it when it’s finished. This past Halloween, he pushed it into the front yard and set a hay bale by it.
  “The trick-or-treaters thought it was neat,” he says. “I expect most of them had never seen a real tractor before.”
  Contact: FARM SHOW Followup, Nathan Fleischer, 2506 California St., Berkeley, Calif. 94703 (ndfleischer@gmail.com).
