Simple Clamp-On Bucket Forks

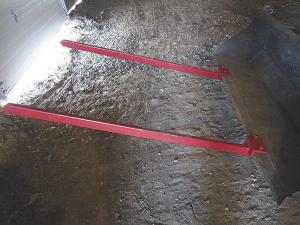

I built a set of clamp-on pallet forks for my compact loader tractor. They fasten to the lip of the bucket with 1/2-in. set screws, which makes attaching and removing the forks a fast and easy job, says Cory Pleschourt, Northfield, Minn.
The forks are made out of 1 by 2-in. rectangular tubing and have angle
..........
You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book

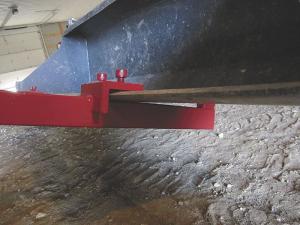

Simple Clamp-On Bucket Forks TRACTORS I built a set of clamp-on pallet forks for my compact loader tractor They fasten to the lip of the bucket with 1/2-in set screws which makes attaching and removing the forks a fast and easy job says Cory Pleschourt Northfield Minn The forks are made out of 1 by 2-in rectangular tubing and have angle iron brackets welded to them made out of 3 by 3 by 1/2-in steel A pair of 5/16-in thick metal spacers are welded to the underside of the bucket to keep the forks level It takes only about 30 seconds to loosen the set screws and take the forks off notes Pleschourt Contact: FARM SHOW Followup Cory Pleschourt 15376 Falk Ave Northfield Minn 55057 ph 507 330-5113; cory pleschourt@us bosch com
