Tractor Rig Hauls Rocks, People

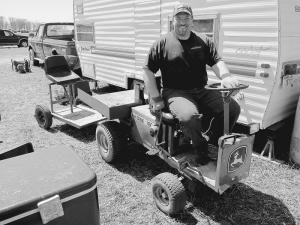

Michael Naus converted an old Deere 116 garden tractor into a rock hauler that he can also use to transport riders.
He stripped the tractor down to the frame and then lengthened the frame by 1 ft. to make room for a new garden tractor seat and platform. He relocated the steering wheel to the front, mounting it
..........
You must sign in, subscribe or renew to see the page.

You must sign in, subscribe or renew to see the flip-book
Tractor Rig Hauls Rocks People FARM HOME Novelty Items Michael Naus converted an old Deere 116 garden tractor into a rock hauler that he can also use to transport riders He stripped the tractor down to the frame and then lengthened the frame by 1 ft to make room for a new garden tractor seat and platform He relocated the steering wheel to the front mounting it on a vertical steering column He also moved the tractor’s hydrostat transmission forward A lever located alongside the seat is used to shift the transmission He had a local machine shop build a 3-ft sq steel rock box with 6-in high sides which bolts onto metal brackets welded on back of the tractor The box is lined with a poly bedliner and is dumped using an electric actuator A homemade 2-wheeled trailer with a seat mounted on it can be pulled behind the tractor The fiberglass chair sets on welded-together metal supports that pin onto the trailer’s wooden floor “I just pull a pair of pins whenever I need to use the trailer to haul something else ” notes Naus Contact: FARM SHOW Followup Michael Naus N3134 County Road I Waldo Wis 53093 ph 920 912-7419; jmoperation@yahoo com
