Stationary 3-Jaw Lathe Chuck Converted Into A Portable Model
    Vern Goodwin, Lincoln, Neb.: “I came up with an easy way to carry sockets to a job site. I screwed 3 socket-holding metal strips onto a 2-ft. long, 4-in. wide piece of kitchen countertop. I keep a 6 and 12-point socket next to each socket size.
    “It really comes in handy with rounded off nuts and bolt heads. For example, if a 7/16-in. socket won’t catch on the bolt head I can quickly switch to the corresponding 6 or 12-point socket, which has a better chance of grabbing all sides of the bolt head. I drilled a big hole into one end of the tray to hang it on my shop wall.

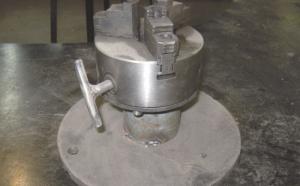

    “I converted a stationary 3-jaw lathe chuck into a portable model by mounting the lathe chuck on a round stand made from 1/2-in. thick steel. At the center of the stand I welded a big pipe that screws into the back side of the lathe chuck. I also drilled a hole into the stand to hang it on a wall. I use the lathe chuck’s T handle to move the jaws in or out.
    “Works great whenever I have to work on something round, such as a wheel hub. I’ve used it many times to install wheel spokes.
    “I use an old hospital bed clamp in my shop’s drill press to hold any round parts that I want to drill into or work on. The bed clamp was designed to hold food trays on hospital beds. I got it from a friend who worked in the maintenance department at a local hospital. The clamp’s moveable jaws are designed to secure any round tube up to 2 in. in dia.”
