Shift Kit For Case IH Magnum Tractors

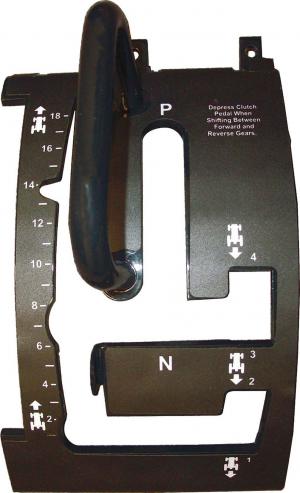

Shift Kit For Case IH Magnum Tractors TRACTORS “If you’re frustrated with the way your Case IH Magnum tractor shifts we can probably help ” says Jerry Kriesch Abilene Machine about a new kit designed to solve shifting problems for Magnums built from 1988 to 1996 The problem with those models is the long shift from forward to reverse and vice versa The kit includes a lock lever that blocks off the lower 6 gears to shorten up your shift movements Installation involves removing 2 pieces the top shift cover and the park cam – and adding 2 pieces – a new shift cover and the lever “It allows easy shifting from forward to reverse without entering the lower gears As a result you can shift from high reverse to 7th gear in one easy motion ” says Kriesch For 2-reverse tractors the kit expands your reverse options by making the third and fourth gears operational Essentially your 2-reverse tractor becomes a 4-reverse tractor like on new models “It’s an important feature if you use front-end loaders a lot because you don’t have to make nearly as many shift movements ” says Kriesch “Without the kit if you’re in forward gear and want to shift into reverse you have to bring the shift lever all the way down and then over 3 in and up 2 in With the kit installed you just move the shift lever left or right and then 1 1/2 in forward into reverse gear ” Each shift kit includes one shift plate cover park lock lever decals and instructions It can be easily installed in less than two hours Sells for $450 plus S&H Contact: FARM SHOW Followup Abilene Machine P O Box 129 Abilene Kan 67410 ph 800 255-0337; sales@abilenemachine com; www AbileneMachine com or Belmond Iowa ph 800 866-1504 or Bishopville S C ph 800 543-2451

To read the rest of this story, download this issue below or click here to register with your account number.
