Mobile Mini Rock Crusher

2012 - Volume #36, Issue #5, Page #23

[ Sample Stories From This Issue | List of All Stories In This Issue | Print this story | Read this issue]

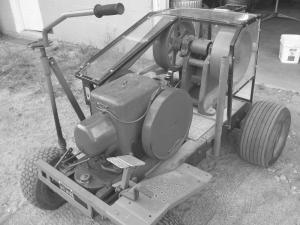

Larry Fulton’s rock crusher wouldn’t do much good in a quarry, but it sure gets attention at parades and shows. The crusher was built for use in a minerals assay office in 1903. Fulton motorized the crusher and made it self-propelled as well.
  “I put it on a cart with a 1939 International 1 1/2 hp motor on it,” recalls Fulton. “The 300-rpm motor powers the crusher and the cart. I can drive it up and down onto a trailer to take it to shows.”
  Originally, Fulton installed a seat to go with the tiller-style turning lever. However, he found it impossible to get insurance for a drivable rock crusher. Once he removed the seat, insurance was not a problem.
  The cart itself is an old golf cart with its original back wheels, differential and brakes. The front axle is off an old garden tractor, as is the 6-speed transmission that connects to the differential. The engine has a crank handle and a magneto.
  “With the engine in place, the cart weighs about 1,020 lbs.,” says Fulton. “I ran a V-belt to the transmission and a 4-in. wide flat belt to run the crusher flywheels.”
  The crusher itself has a 5-in. wide jaw with a 3-in. spread for a full 3 by 5-in. opening. The back plate in the jaw can be lowered to make smaller size pieces. The crushing takes place when a camshaft oscillates, pushing the back plate up against the rock in the opening. As the rock breaks up, it falls further and further into the V-shaped jaw, finally exiting when small enough.
  The crusher was made by Denver Fire Clay Co. The camshaft rides between two 4-in. wide and 14-in. dia. flywheels. Fulton spliced the flat belt together out of an old round baler belt. He made a tightener for it and put a clutch on the back to control the power to the big flywheels.
  While the crusher could handle harder rock, for the purpose of demonstrations Fulton uses soft rock such as sandstone. “My last show, the crowd of adults and kids crushed 15 gal. of fines from 25 gal. of stone,” he says. “Kids love dropping a piece of rock in and seeing it get crushed.”
  Contact: FARM SHOW Followup, Larry Fulton, 4504 E. 17th St., Cheyenne, Wyo. 82001 (ph 307 634-7042; lhfulton@msn.com).
