Home-Built "Push Frame" On Front Of Sears Garden Tractor

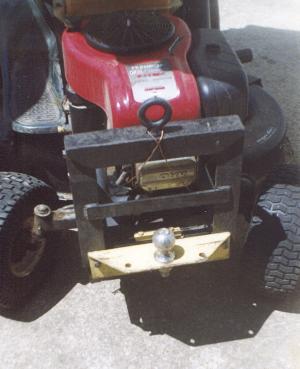

Bill Reeks, Cromwell, Ky.: “I used 2-in. angle iron to build a ‘push frame’ on front of my Sears Craftsman garden tractor. Metal braces extend from the top of the frame down at a 45 degree angle to the tractor frame. I attached a 1 7/8-in. ball hitch to it that lets me push small trailers around without having to look backward, which helps a lot because I have arthritis in my shoulders and neck. In fact, I’ve mounted push frame-mounted ball hitches on several garden tractors.

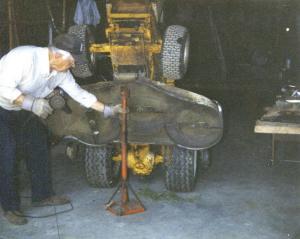

    “I also attached an eye-bolt on top of the push frame so I can lift the tractor with a chain hoist from the trusses in my pole barn. It’s really handy for sharpening the mower’s blades. I place a safety stand under the deck and then let the tractor down until it rests on the stand. Then I can sit in a chair and sharpen the blades without having to remove the deck or bend over.
    “I remove the hood from every garden tractor I own as soon as I get it home and never put it back on. To me the tractor hood is just a nuisance. I use the open space in the engine compartment to store stuff that I want to bring with me, such as tools or an umbrella.

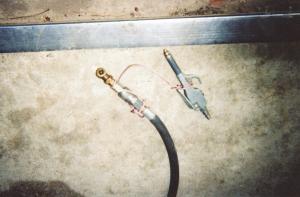

    “I used a short length of wire to connect the chuck on my air compressor with the blow nozzle. That way the nozzle is always there when I need it. It’s really handy when blowing dust out of tractors or sweeping a floor.”
