Boom-Mounted Electric Winch Works Great To Retrieve Logs
"I have a lot of old oak tree tops left over from timber that was harvested years ago. Much of the wood is hard to get to, so I added a remote-operated winch to the 3-pt. boom on my tractor. It works great for pulling logs out of the woods," says Glenn Fisher, Homer, Ga.

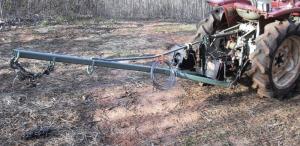

He already had the 3-pt. boom. The 12-volt winch was designed to mount on a trailer hitch ball, so he welded a trailer ball onto one side of the boom. He welded a metal plate to the other side and mounted a 12-volt battery on it. A snatch block pulley at the end of the boom is used to guide the cable to the winch.
"It's really handy," says Fisher. "The winch came with a 10-ft. cable and with a hand crank to pull the cable tight. I carry extra cable and snatch blocks to the woods in case the log has to be guided around trees to get it out. Once I pull the log out of the woods I can attach a chain and use a tractor to drag the log to a convenient place for cutting into firewood.

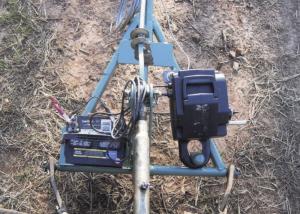

"The front part of the winch bolts onto a metal bracket that I welded onto the boom. To remove the winch for storage I just pull one bolt. The battery is held in place by a bungee cord for easy removal. I decided it was easier to operate the winch off a separate battery rather than hooking it up to the tractor battery and having to hassle with hooking up cables. I keep things simple by using alligator clips for the battery connectors."
Contact: FARM SHOW Followup, J. Glenn Fisher, Jr., 751 Boling Road, Homer, Ga. 30547 (ph 423 364-0158).
