Bypass Centrifuge Extends Engine Life
When FARM SHOW first wrote about Dieselcraft bypass centrifuges 4 years ago (Vol. 31, No. 3), they were in high demand for processing vegetable oil and waste oil for burning in diesel engines. But they're also the best way out there to keep engine oil clean.
Centrifuges remove moisture and particles from engine oil. Early units were gravity-fed and had to be mounted above the engine, a problem in today's tightly packed engine compartments.
"We needed a massive drain hole back into the engine," recalls John Nightingale, Dieselcraft Fluid Engineering. "What we needed was air pressure to push the oil back into the engine."
Nightingale attached a small compressor to the centrifuge. This allows the unit to be mounted anyplace under the hood. Air pressure can push the oil up to 3 ft. vertically or up to 7 ft. horizontally.
"You can mount it down on the frame rail if necessary," says Nightingale. "All you need is a 6 by 6 by 6-in. space."
Other factors that are building interest in the centrifuge include the increasing cost of oil changes and the difficulty of filtering new, longer lasting, synthetic oils. "Changing oil in a big front-end loader may have to be done every 250 hrs. at a cost of $1,500," says Nightingale. "We ran tests on one and demonstrated that by switching to synthetic oil and our centrifuge, the loader could go at least 750 hrs. without changing oil or filters." Though synthetic oil lasts longer as an effective lubricant, it also prevents the natural clumping of dirt and other particles by molecular attraction necessary for optimal filtering. While carbon particles of 0.1 microns or less may not affect lubrication, they can build up on cylinder walls and other places and affect additive anti-wear effectiveness.
Without centrifugal action, it's hard to clean carbon and other particles out of synthetic oil. The best filters only extract down to 7 microns, and regular oil filters only catch particles 25 microns and larger.
"Those small particles can only be removed by a centrifuge," says Nightingale. "Our centrifuges remove particles as small as 1/10 of one micron."

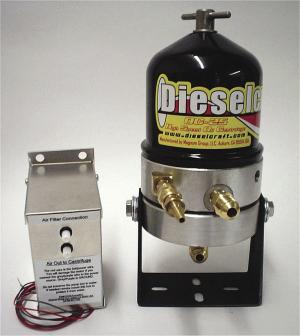

Dieselcraft offers a unit, the OC-25, for cars, pickups and smaller engines. It's priced at $599. A larger unit, the Magnum Model 180 AP, is recommended for engines with 100-gal. sumps and larger. It is priced at $699.
Contact: FARM SHOW Followup, John T. Nightingale, Magnum Group, Dieselcraft Fluid Engineering, P.O. Box 7670, Auburn, Calif. 95604 (ph 530 613-2150; sales@dieselcraft.com; www.dieselcraft.com).
