Electric Winch Operates Farmall Lift System

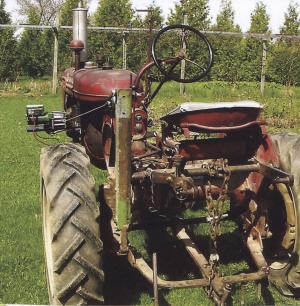

"When the lift system on my 1941 Farmall A tractor quit working, I solved the problem by mounting an electric winch on one side of the tractor. Now raising or lowering the lift system is as simple as pressing a button on a remote control," says Kenneth Hoppert, Plymouth, Wis.
The original lift system used the tractor's exhaust to operate a 2-ft. long cylinder mounted on one side of the tractor that lifted using air from the exhaust. The cylinder was connected to the bottom of a vertical metal bar that was part of the lift system. However, a gasket inside the cylinder became pitted and started leaking so it wouldn't work any more.
"They wanted $70 for a new gasket, which I thought was too much," says Hoppert.

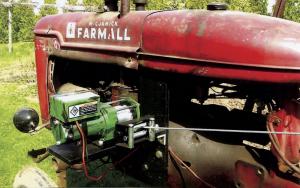

To solve the problem, he removed the cylinder and then bought a small electric winch from Harbor Freight for $49. The winch mounts on 2 steel plates and a length of angle iron that bolt to the side of the tractor. Cable runs back to a clevis that Hoppert mounted on top of the vertical bar. "I use the tractor to plow my garden. I didn't use the plow for 2 years because I couldn't lift the plow out of the ground, but now it works perfect," says Hoppert.
The winch operates on 12 volts but the Farmall has a 6-volt ignition system so Hoppert replaced the tractor's original battery with the 12-volt battery from a 1993 Ford escort. "To start the tractor I either crank start it or jump the starter. I don't use the tractor often enough to justify switching to a 12-volt ignition system," notes Hoppert.
Contact: FARM SHOW Followup, Kenneth E. Hoppert, W5182 County Rd. U, Plymouth, Wis. 53073 (ph 920 893-5516).
