He Made His Own Platform Weigh Scale
"Having my own on-farm platform scales has saved me a lot of time hauling grain to town," says Mark Musser, Beecher City, Ill.

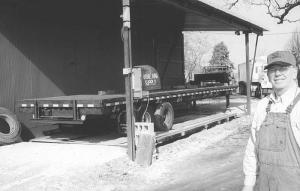

He used the bed from a 35-ft. semi trailer as a platform and installed four load cells under it, one at each corner. He paid $50 for a used semi trailer bed, which he cut back to 25 ft.
..........
You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book
He Made His Own Platform Weigh Scale GRAIN HANDLING Miscellaneous 90-10-95 "Having my own on-farm platform scales has saved me a lot of time hauling grain to town," says Mark Musser, Beecher City, Ill.
He used the bed from a 35-ft. semi trailer as a platform and installed four load cells under it, one at each corner. He paid $50 for a used semi trailer bed, which he cut back to 25 ft. He also widened the bed 1 ft. on each side to a width of 11 ft. A read-out monitor at one corner of the scale is enclosed in a weatherproof metal box.
The platform is covered with 3 by 12 bridge planks, which add strength and spread out the truck's weight across a wider area. Musser used salvaged metal to make a roof over the scales.
"I use it to weigh short semi trailers loaded with corn and soybeans," says Musser, who rents land from several different landlords. "I paid $1,000 for the load cells and spent another $150 for other materials."
Contact: FARM SHOW Followup, Mark Musser, 2361 E. 1950 Ave., Beecher City, Ill. 62414 (ph 618 487-5837).
