Hoist Built From Discarded Swing Set
 ✖  |

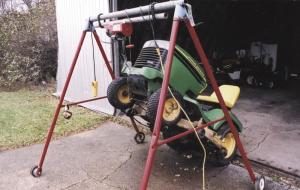

Elroy N. Lindaas, Mayville, N. Dak.: "This handy hoist, built from a discarded swing set, provides me with a safe and easy way to clean the deck and sharpen the blades on my riding mower. Once the riding mower is on the hoist I can pull up a seat on rollers and work from a sitting position.
"First I shortened the swing's overhead horizontal pipe to about 6 ft. wide. Then I slipped a heavier 2-in. dia. galvanized pipe over the pipe to reinforce it, and used -in. sheet metal screws to secure the two pipes. I used no. 60 roller chain to secure a 1 -in. dia. pipe below that, and mounted an electric winch on it. I use a remote control to operate the winch, which I bought at Harbor Freight for about $60. It has better than a 400-lb. rating. Small wheels on the legs make the swing easy to move around."
Click here to download page story appeared in.
Click here to read entire issue
Hoist Built From Discarded Swing Set FARM SHOP Tools 34-1-36 Elroy N. Lindaas, Mayville, N. Dak.: "This handy hoist, built from a discarded swing set, provides me with a safe and easy way to clean the deck and sharpen the blades on my riding mower. Once the riding mower is on the hoist I can pull up a seat on rollers and work from a sitting position.
"First I shortened the swing's overhead horizontal pipe to about 6 ft. wide. Then I slipped a heavier 2-in. dia. galvanized pipe over the pipe to reinforce it, and used -in. sheet metal screws to secure the two pipes. I used no. 60 roller chain to secure a 1 -in. dia. pipe below that, and mounted an electric winch on it. I use a remote control to operate the winch, which I bought at Harbor Freight for about $60. It has better than a 400-lb. rating. Small wheels on the legs make the swing easy to move around."
