Convert Your ATV Into A Heavy Duty Sprayer

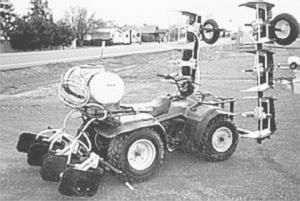

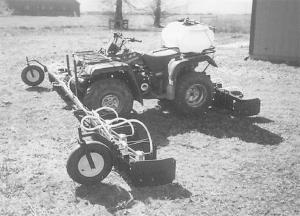

Convert Your ATV Into A Heavy Duty Sprayer ATV'S ATV'S 31-1-11 You can convert your 4-wheel ATV into a row crop sprayer - equipped with both front and rear-mount booms and with shielded spray units - with a kit from Agriweld, Inc., Monmouth, Oregon. The RS 704 toolbar is designed for use as a "between the row sprayer" to spray chemicals, primarily glyphosates, between crop rows. Adjustable width shields protect the plants from direct contact with the spray. The sprayer unit consists of a 10-ft. length of 2-in. sq. tubing that mounts on front of an ATV for planting widths of less than 10 ft. Gauge wheels at each end allow the boom to follow uneven ground contours. A three-piece bar is available that covers up to a 15-ft. width. The three-piece bar has fold-up wings that mount on front of the ATV and a boom on back that covers the center rows. Shields are available for row widths from 10 to 30 in. Units for raised beds or irregular crops are also available, and custom toolbars and mounting systems can be built. The sprayer unit can also be installed on a small row crop tractor. Contact: FARM SHOW Followup, Agriweld, Inc., 13000 S. Pacific Hwy. W., Monmouth, Oregon 97361 (ph 503 838-3960; fax 503 838-0959; info @agriweld. com; www.agriweld.com).

To read the rest of this story, download this issue below or click here to register with your account number.
