Mirror On Small Square Baler

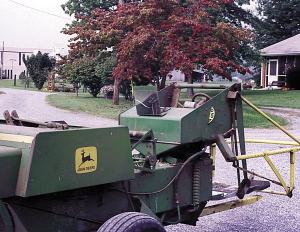

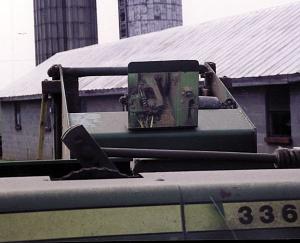

We bolted a 10 by 8-in. mirror onto our Deere 336 small square baler that allows us to see the knot as it's being made. We can tell if the knot isn't tied properly or if the string comes out of the needles, before the bale exits the bale case. It has saved us a lot of broken bales.
  The mirror is glued onto a bracket made from 1/16-in. thick sheet metal. The bracket can be easily bent to provide the proper angle. (Raymond Huffman, 7820 Lila Drive, Roanoke, Va. 24019 ph 540 366-7350)

  Click here to download page story appeared in.

  Click here to read entire issue

To read the rest of this story, download this issue below or click here to register with your account number.
Order the Issue Containing This Story
2003 - Volume #27, Issue #1
