Reversible Dump Bucket

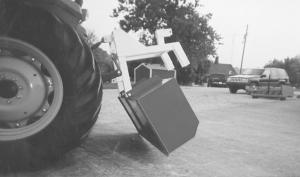

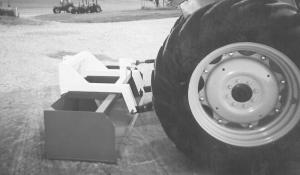

This new 3-pt. mounted dump bucket is equipped with 3-pt. brackets on the front and back so it can be reversed, allowing you to use it in either direction.
  "It's like having a front-end loader on back of your tractor," says inventor Jack Sheperson of Gravel Switch, Ky.
  The patent pending Humdigger measures 6 ft. wide, 17 in. high, and 24 in. deep. The tractor's 3-pt. hitch is used to raise or lower the bucket, while a built-in hydraulic cylinder is used to tilt it up or down.
  "You can use it as a mini dozer to push or dig material; as a grader blade with the bucket tilted to grade, level or fill in holes; or as a scoop to haul dirt, gravel, etc. It actually works better than a front-end loader because it doesn't put stress on the tractor's front axle. The hydraulic dump feature is really handy and eliminates the need to fight with a manual trip lever.
  Sells for $890. A 5-ft. model is also available and sells for $850.
  Contact: FARM SHOW Followup, Jack Sheperson, Shep's Mfg. Inc., 205 Rollertown Rd., Gravel Switch, Ky. 40328 (ph 270 692-6024).

  Click here to download page story appeared in.

  Click here to read entire issue

To read the rest of this story, download this issue below or click here to register with your account number.
Order the Issue Containing This Story
2003 - Volume #27, Issue #1
