Bucket-Mounted Tractor Lights
"I use them all the time - I can't believe how well they work," says Jim Kaczmarek, who installed a row of lights on a front-end loader bucket.
"I can tilt the bucket up or down to shine the light exactly where it's needed. For example, when I tilt the bucket down to dump dirt, the lights shine right on the dump
..........
You must sign in, subscribe or renew to see the page.

You must sign in, subscribe or renew to see the flip-book
Bucket-Mounted Tractor Lights TRACTORS Accessories 27-3-29 "I use them all the time - I can't believe how well they work," says Jim Kaczmarek, who installed a row of lights on a front-end loader bucket.
"I can tilt the bucket up or down to shine the light exactly where it's needed. For example, when I tilt the bucket down to dump dirt, the lights shine right on the dumping area. Even if a tractor has good lights, I think bucket-mounted lights would work much better because they automatically tilt up and down with the bucket."

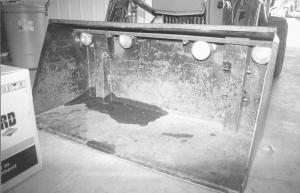

Kaczmarek mounted four 65-watt sealed beam lights along the top edge of the bucket. He drilled holes in the bucket to mount the light. The wiring for the lights runs through a length of square tubing just above the lights. The lights operate off the tractor's battery and are turned on or off by a pair of switches mounted on the tractor dash.
Contact: FARM SHOW Followup, Jim's Repair, 16330 Goodwin Ave., Hastings, Minn. 55033 (ph 800 618-8738 or 651 437-7199; email: jimsrepairjimstractors.com or bkacz@jimsrepairjimstractors.com).
