Forklift-Mounted Grain Box Feeder

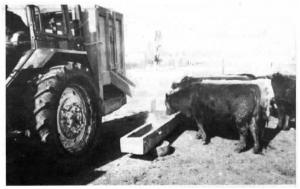

When Bob Dobson decided to increase the number of cows and calves he was feeding on pasture from 50 to more than 200 at a time, he knew he wouldn't be able to feed them grain by hand any more. So he built a simple forklift-mounted "grain box" feeder with a chute that feeds out the side.
"It lets me feed in only six minutes with-out having to get off the tractor. The short feeding time gives all animals equal access to feed," says Dobson, of Cobden, Ontario.

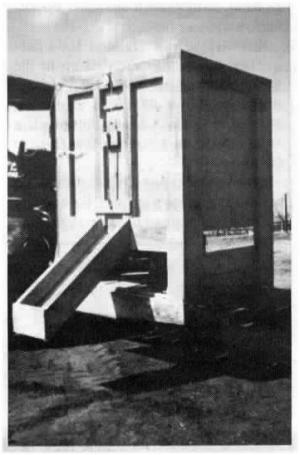

He used mostly 3/4-in. plywood and 2 by 4's to build the 4-ft. square by 6-ft. high box. It holds about 1,400 lbs. of grain and has a bottom that slopes to the side. A 311 2-ft. long unloading chute slants down at a 45 degree angle and has a baffle board at the bottom to keep feed from overshooting the bunk. A sliding door above the chute is controlled by a rope that runs through a pulley and then back up to the tractor. A bunge cord pulls the door back down into the closed position.
The top of the box is open. To fill, Dobson backs under a pair of overhead bins, one holding cracked corn and the other pellets, and loads feed out of each bin by pulling on a rope.
Short lengths of chain keep the box from sliding off the tractor-mounted forklift on sidehills, notes Dobson. He spent about $1,000 to build the feed box.
Contact: FARM SHOW Followup, Bob Dobson, Rt. 3, Cobden, Ontario, Canada K0J 1K0 (ph 613 646-2488).
