Hitch Makes It Easy To Tow ATV
Alan Brule, Crookston, Minn., made a hitch to tow his 4-wheel ATV behind his tractor, pickup, grain drill, field cultivator, and other equipment.

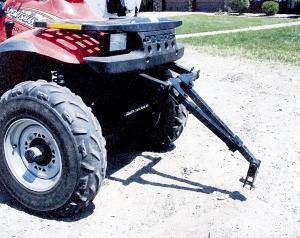

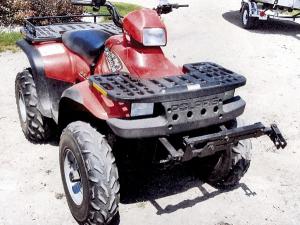

  The hitch is made from telescoping tubing. One end of the hitch attaches to a metal bracket that bolts to the front part of the ATV frame. A hitch pin goes through the hitch as well as the bracket and is secured by a cotter pin. The other end of the tubing is pinned to a clevis that attaches to the implement.
  "It's a simple idea but it really comes in handy," says Brule. "I'm usually alone in my fields which are scattered out, so I use it all the time. I've even pulled it behind my pickup at speeds up to 55 mph. When I get to the field I drop off the equipment and ride the ATV back home to get whatever else I need. The hitch detaches in just a few seconds. I bought about $40 worth of steel to put it together. I pull my drill lengthwise down the road. The markers on my grain drill stick out kind of far, but the hitch on the ATV telescopes so there's plenty of clearance."
  Contact: FARM SHOW Followup, Alan Brule, 19457 260th St. S.W., Crookston, Minn. 56716 (ph 218 281-7456).
