Mounted On Deere 4520 Tractor Big Air Cleaner Off Allis Chalmers Tractor
 ✖  |

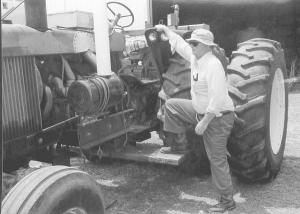

Roger Wessels, Fairbury, Ill.: "The under-the-hood air cleaner on my Deere 4520 tractor was hard to get at so I replaced it with a big air cleaner off an old Allis Chalmers tractor. It consists of a big metal cylinder that I mounted on a steel I-beam which I bolted lengthwise to one side of the tractor. I inserted a piece of 4-in. dia. PVC pipe into the top of the tank. It puts the air cleaner out in the open where it's much easier to service.
"To make it easier to get on the tractor, I added a wooden ęstepping plank' that reaches from one side of the tractor to the other and extends out about 3 ft. on each side."
