Home-Built Low-Cost Grain Vacuum
 ✖  |

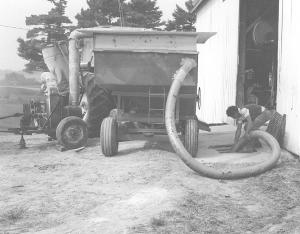

Fifteen years ago, Roger Datisman of Sherrill, Iowa, designed and built this low-cost grain vacuum using an old silage blower and his 200-bu. grain wagon (Vol. 7, No. 6). His "reversed" silo blower sucks air out of the sealed-up wagon, pulling grain up the 8-in. flexible metal tubing used as a vacuum hose. He converted the wagon into a giant vacuum chamber by installing a layer of perforated flooring across the top and built a 1-ft. high plywood extension above the flooring. He then sealed the wagon shut with a sheet of plywood across the top, cutting an 8-in. dia. hole in one end of the plywood sheet and another the same size in the side of the wagon below the perforated floor.
Click here to download page story appeared in.
Click here to read entire issue
Home-Built Low-Cost Grain Vacuum GRAIN HANDLING Miscellaneous 23-5-3 Fifteen years ago, Roger Datisman of Sherrill, Iowa, designed and built this low-cost grain vacuum using an old silage blower and his 200-bu. grain wagon (Vol. 7, No. 6). His "reversed" silo blower sucks air out of the sealed-up wagon, pulling grain up the 8-in. flexible metal tubing used as a vacuum hose. He converted the wagon into a giant vacuum chamber by installing a layer of perforated flooring across the top and built a 1-ft. high plywood extension above the flooring. He then sealed the wagon shut with a sheet of plywood across the top, cutting an 8-in. dia. hole in one end of the plywood sheet and another the same size in the side of the wagon below the perforated floor.
