Drywall "Helper" Mounts On The Bucket Of Skid Steer Loader

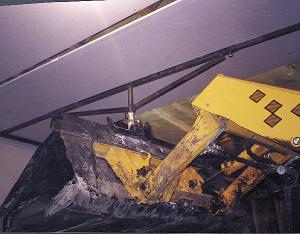

Here's a drywall "helper" I made last winter when I was sheet rocking my garage ceiling. It mounts on the bucket of my Mustang skid steer loader and made hanging 4 by 12-ft. panels of sheet rock a lot easier.
It consists of a bracket that attaches to the bucket where the grapple forks normally go. It pins in thr
..........
You must sign in, subscribe or renew to see the page.
You must sign in, subscribe or renew to see the flip-book
Drywall "Helper" Mounts On The Bucket Of Skid Steer Loader TRACTORS Skid Steer Loaders 23-3-33 Here's a drywall "helper" I made last winter when I was sheet rocking my garage ceiling. It mounts on the bucket of my Mustang skid steer loader and made hanging 4 by 12-ft. panels of sheet rock a lot easier.
It consists of a bracket that attaches to the bucket where the grapple forks normally go. It pins in three places, where the two ears are and where the hydraulic cylinder hooks up. A 1-ft. long pipe extends from the middle of the bracket and is fitted with telescoping arms made from 1 1/2 and 1 1/4-in. sq. tubing. The arms, which swivel on the pipe to position the sheet rock exactly where you want it, telescope from 6 to 8 ft. so the device is suitable for panels up to 12 ft. long. It works on ceilings up to 12 ft. high.
I made the helper out of scrap materials so it cost nothing to build. It definitely made sheet rocking my garage a painless, ache-less project. (Richard Hastings, 41410 101st St., Britton, S. Dak. 57430; ph 605 448-2138)
