Hydraulic Presses
 ✖  |

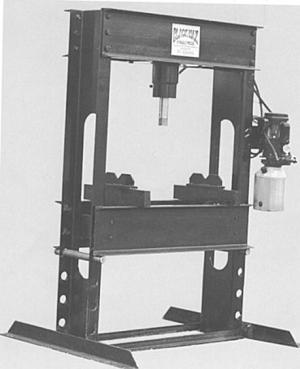

Cottonwood Welding's new Black Max hydraulic press is built tough and comes in three models with 50, 100, and 125-ton capacities. The 50-ton model has a 12-in. cylinder stroke and a self-contained hydraulic system equipped with a 2-speed hydraulic pump; 6-position bed height adjustment; an open-ended frame for long parts; press blocks and V-blocks as standard equipment; and 2-in. bed pins with hardened holes. It uses single phase electricity; 3-phase is optional. The 100-ton model is 86 in. high and 64 in. wide and has a maximum working width of 48 in.
"The bed is hydraulically raised or lowered on all models. A pressure gauge is standard equipment.
"The 50-ton model sells for $3,250; the 100-ton model for $4,595; and the 125-ton model for $5,295. All prices are F.O.B. Cottonwood, Minn.
Contact: FARM SHOW Followup, Cottonwood Welding & Machine, Inc., Box 15, Cottonwood, Minn. 56229 (ph 507 423-6666; fax 5609):
Click here to download page story appeared in.
Click here to read entire issue
Hydraulic Presses FARM SHOP Tools 23-1-40 Cottonwood Welding's new Black Max hydraulic press is built tough and comes in three models with 50, 100, and 125-ton capacities. The 50-ton model has a 12-in. cylinder stroke and a self-contained hydraulic system equipped with a 2-speed hydraulic pump; 6-position bed height adjustment; an open-ended frame for long parts; press blocks and V-blocks as standard equipment; and 2-in. bed pins with hardened holes. It uses single phase electricity; 3-phase is optional. The 100-ton model is 86 in. high and 64 in. wide and has a maximum working width of 48 in.
"The bed is hydraulically raised or lowered on all models. A pressure gauge is standard equipment.
"The 50-ton model sells for $3,250; the 100-ton model for $4,595; and the 125-ton model for $5,295. All prices are F.O.B. Cottonwood, Minn.
Contact: FARM SHOW Followup, Cottonwood Welding & Machine, Inc., Box 15, Cottonwood, Minn. 56229 (ph 507 423-6666; fax 5609):
